K-PUS
Digital Magnetic Compass

K-PUS digital magnetic compass are used for precise measurement of heading, roll and pitch angles Its typical applications are gimbals, autonomous cars, laser rangefinders, thermal binoculars, reconnaissance equipment, mounted weapon systems etc.
Get a Quote Now
Buy Now
With its mechanical design, electrical interface, software commands and data structures, K-PUS is a direct replacement for existing DMCs.
K-PUS has advanced hard-iron and soft-iron calibration capabilities (12-point calibration and easy-calibration).
K-PUS has passed several environmental conditions tests, including MIL-STD-810G.
Get a Quote Now
Buy Now
K-PUS digital magnetic compass sensor has been delivered to defense companies and has been used on several platforms with satisfaction because of its:
Good accuracy
Cost-effectiveness
Reliability
Direct replaceability
Get a Quote Now
Buy Now

APPLICATIONS

Reconnaissance Equipment

Thermal Binoculars

Laser Rangefinders

Unmanned Vehicles and Autonomous Cars

Gimbal and Pan-tilt Systems

Mounted Weapon Systems

SPECIFICATIONS

  • K-PUS-GY2 Performance

    Roll/Pitch (Bank/Elevation) Accuracy ± 0.1° RMS
    Yaw (Heading, Azimuth) Accuracy ± 0.25° RMS
    Sampling Rate Up to 50 Hz
    Pitch/Roll Calibrated Range – 45° / + 45°
    Pitch/Roll Operational Range – 80° / + 80°
    Power Supply 5 V (± %5)

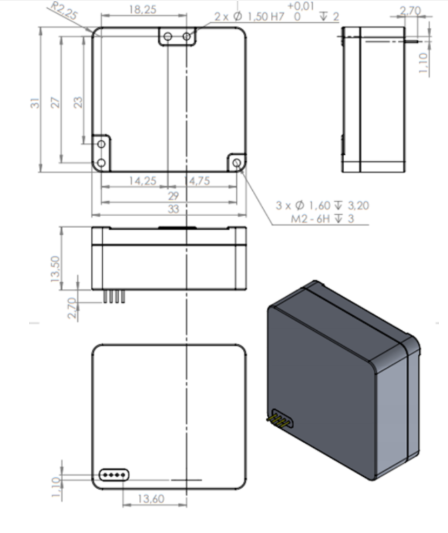

    Dimensions 33x31x13.5 mm
    Weight < 26 gr

  • K-PUS-GY5 Performance

    Roll/Pitch (Bank/Elevation) Accuracy ± 0.1° RMS
    Yaw (Heading, Azimuth) Accuracy ± 0.5° RMS
    Sampling Rate Up to 50 Hz
    Pitch/Roll Calibrated Range – 45° / + 45°
    Pitch/Roll Operational Range – 80° / + 80°
    Power Supply 5 V (± %5)
    Dimensions 33x31x13.5 mm
    Weight < 26 gr

SENSOR DATA

  • 3-D Accelerometer

    Measurement Range +/- 2g to +/- 16g
    Non-Linearity +/- 0.5%
    Noise X-Y-X 0.75-0.75-1.1 LBS RMS
    Sensitivity 256 LBS/g (2g)

  • 3-D Gyroscope

    Measurement Range +/- 2000 degrees/second
    Lin. Acc. Sensitivity 0.1 deg/sec/g
    Total RMS Noise 0.1 deg/sec RMS
    Non-Linearity +/- 0.2 %
    Cross-axis Sensitivity +/- 2 %

  • 3-D Magnetometer

    Measurement Range +/- 8 Gauss
    Non-Linearity 0.1 % Full Scale
    Digital Resolution 18 bit
    Resolution 16384 Count/G
    Sensitivity 61 mikrogauss

DOCUMENTATION

K-PUS Digital Magnetic Compass Datasheet
K-PUS Sensor Compensation Procedure
